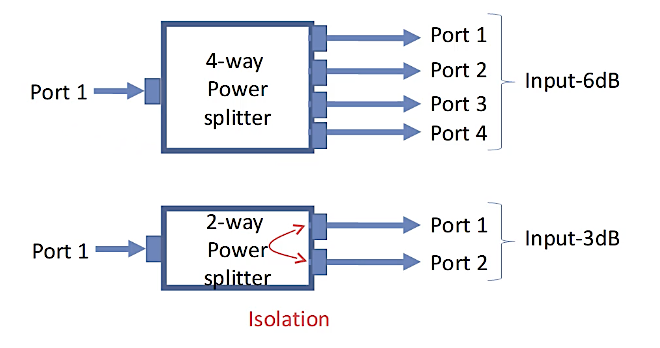

功分器全稱功率分配器,英文名Power divider,是一種將一路輸入信號能量分成兩路或多路輸出相等或不相等能量的器件,也可反過來將多路信號能量合成一路輸出,此時可也稱為合路器。威爾金森功分器最常用的是電路板的1/4波長線來實現的,威爾金森功分器具有諸多優點:1)實現簡單;2)成本低;3)埠之間的隔離度好。

電阻型的功分器原理是靠裡面的電阻片來實現的,更多地工作於寬頻應用。但是電阻型的一大缺點是隔離度很差,在電阻型功率分配器其中,隔離度僅等於插入損耗。電阻型功率分離器會略好一點,隔離度等於兩倍插入損耗。而一分二的電阻型功率分配器,最小的差入損耗也會高達6dB以上,所以這個隔離度數值確實就不好。

The full name of a power divider is a power divider, and its English name is Power divider. It is a device that divides the energy of one input signal into two or more outputs with equal or unequal energy. It can also combine the energy of multiple signals into one output. Can also be called a combiner.

The most commonly used Wilkinson power splitter is realized by the 1/4 wavelength line of the circuit board. Wilkinson power splitter has many advantages: 1) Simple implementation; 2) Low cost; 3) Isolation between ports it is good.

The principle of resistive power divider is realized by the resistor chip inside, and it works more in broadband applications. But the big disadvantage of the resistive type is the poor isolation. Among the resistive power dividers, the isolation is only equal to the insertion loss. Resistive power splitters will be slightly better, with isolation equal to twice the insertion loss. The one-to-two resistive power divider has a minimum differential input loss of more than 6dB, so the isolation value is indeed not good.



V/UHF 功分器(Power Splitter)


120-240MHz功分器(Power Splitter)

120-240MHz功分器(Power Splitter)


300-500MHz功分器 (Power Splitter)

300-500MHz功分器 (Power Splitter)


300-960MHz 功分器 (Power Splitter)

300-960MHz 功分器 (Power Splitter)


70-960MHz功分器(Power Splitter)

70-960MHz功分器(Power Splitter)


JTD-2P-430-N

434MHz 2 Way 功分器(Power Splitters)


JTD-xP-16170-N

162-170MHz 功分器(Power Splitters)


JTD-xP-34360-N

340-360MHz Power Splitters


JTDW-xWPS-1396-NF

公共安全的低頻段組件(LOW BAND COMPONENTS FOR PUBLIC SAFETY)


JTDW-xWPS-xHF-N

136-174 & 350-520MHz VHF & UHF WILKINSON POWER SPLITTER


TSQ-2-D805

100-450MHz 2-way Splitter


TSQ-3-D805

100~450MHz 3 way splitter


TSQ-4-0305F

400-450MHz 4-way Splitter
